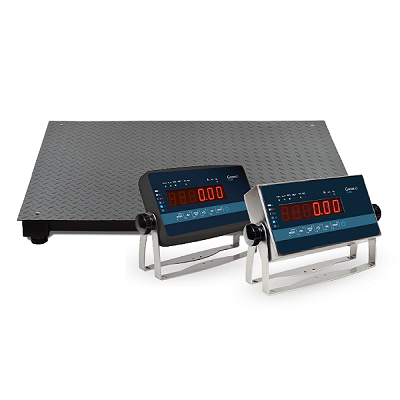

FLOOR SCALE DETAIL

4 LOAD CELLS SCALE

Steel diamond plate with indicator.

FEATURES:

• Platform with 4 load cells.
• It can be used in legal metrology.
• It can be installed on ground.
• Diamond plate 5 mm thick.
• Steel framework and top diamond pan.
• Black enamel.
• Load cells OIML R-60 C3, in steel, IP66 protection.
• Junction box in ABS, IP66 protection.
• Adjustable feet in height.
• 5  output metres of cable included.
• Stainless steel or ABS housing, GI400 model.
• IP54 protection.
• Red LED display with 6 digits of 20 mm.
• Wall support included.
• Power supply 230Vac.
• 2 output RS232 are included.
• Unique range, multi-range or multi-interval.
• Units: kg.
• Approval 6.000 divisions OIML class III and IV.
• EC approval.

FUNCTIONS:

• Weight accumulation: automatic/manual
• Totalization on screen
• Gross/Net
• Manual tare and pretare
• Back to zero
• Piece counting function
• Checkweigher with LED signal
• Function division 1/10 verification. Display for a few seconds
